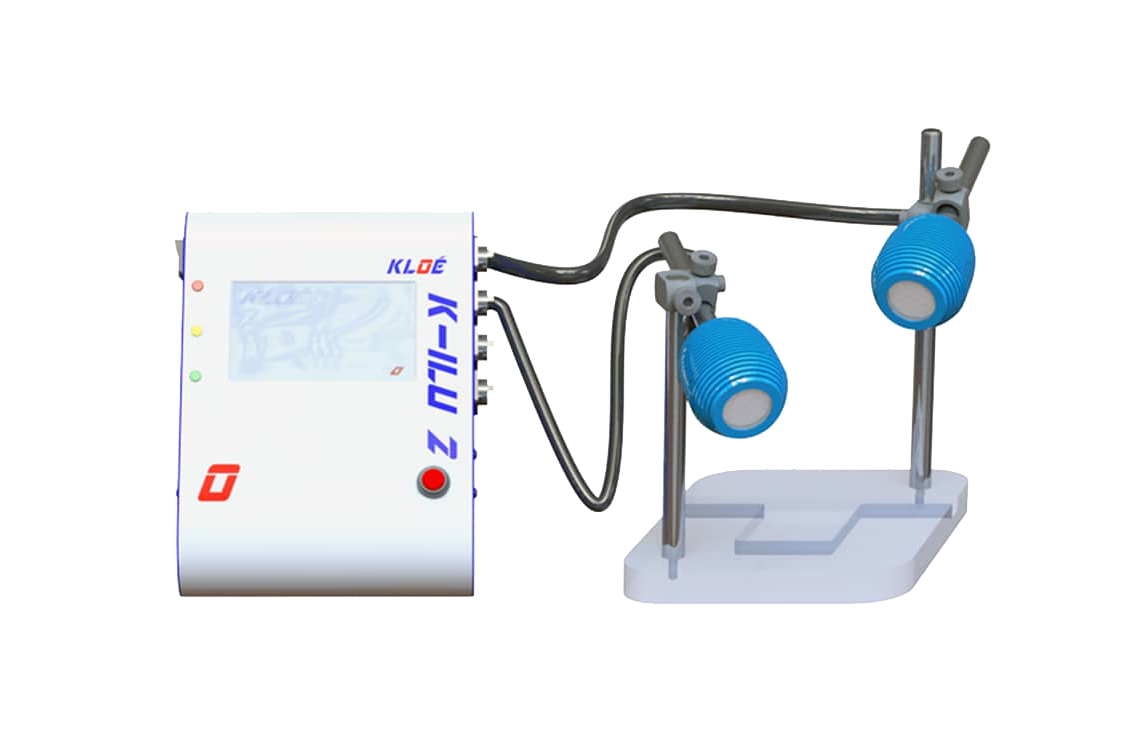

The adhesive curing system, the K-ILU 2 is an UV-LED adhesive curing, touchscreen controlled, offering continuous or flashing programmable curing modes.
The integrated cold-UV concept ensures very low-stress bondings, essential to any pigtailing and optical assembling processes.
UV LED performance
The UV-LED based light source
With the K-ILU range of products, you benefit from the LED technology that generates a "cold UV" light source, thereby eliminating undesirable thermal effects. The LEDs emit perfectly monochromatic light. The lifetime of LEDs (> 10 000h) that form the UV source makes it a reliable and robust system over time, with no particular maintenance.
Compact and user-friendly system

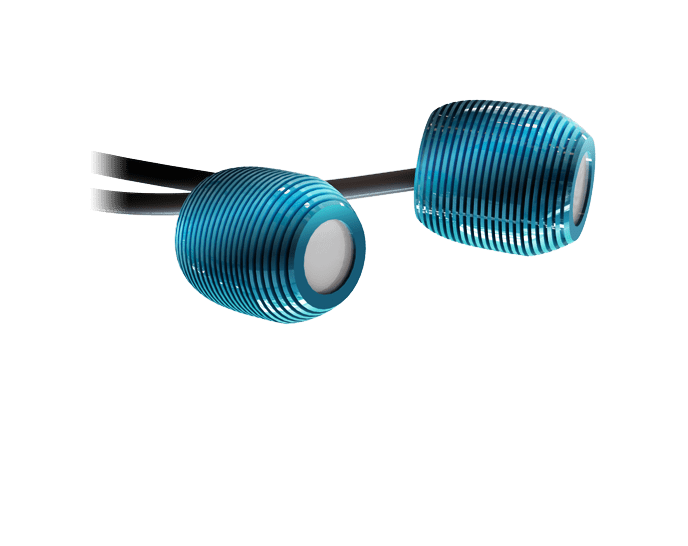

The K-ILU are ideal UV exposure equipments for your laboratory or cleanroom. Compact, they can be used in continuous or flash exposure mode. Ergonomic and fully controlled by touchscreen, you can program and operate up to 4 curing heads, simultaneously or independently.
Ease and comfort of UV-LED use
Optical assembling
Collages of optical chips, fiber matrix, pigtailing and V groove bonding are all essential optical assemblies today for processes in the fields of microelectronics,biotechnology, optics and photonics.
The cold UV don’t induce any stress nor cracks during curing process.
join the success
Don’t just take our word for it
Thanks to their reliability, they have progressively and efficiently replaced our old mercury lamp systems.
We use the K-ILU systems on the fiber-waveguide coupling benches for UV-polymerization of submicron alignments fixing adhesives, which reliability is well-proven in temperature ranges from -40°C to +85°C for several thousand hours.
UV-KUB systems are used in cleanroom for the assembly of processing wafers before slicing operations. We also use these systems during the assembly steps of our hermitically sealed modulators.”
Performances
- Wavelength: 365nm +/- 5nm
- Power density: 200mW/cm² +/- 5%
- Substrate warm-up during exposure: < 2°C
- Exposure cycle: between 1s and 1h
- Number of programmable cycles: 10
Specifications
- Dimensions: 350 x 410 x 355mm
- Weight: 22kg / 48lbs
- Colour touchscreen: 5,7 inches
- Power supply: 100V/240V – 50Hz/60Hz
- Consumption: 800W
- Exposure time blue tapes: ADWILL D650 – 15s
- Exposure time blue tapes: ADWILL D175 P370 – 45s
